Android UI開發第四十三篇――使用Property Animation實現墨跡天氣3.0引導界面及動畫實現

來源：程序員人生   發布時間：2014-09-17 19:48:31 閱讀次數：4740次
前面寫過《墨跡天氣3.0引導界面及動畫實現》，里面完美實現了動畫效果，那一篇文章使用的View Animation，這一篇文章使用的Property Animation實現。Property Animation是Android3.0以后新增的動畫庫。

這篇文章的源碼以及效果在github。

    實現墨跡天氣向上滑動的viewpager使用的開源庫ViewPager-Android。ViewPager-Android開源庫設置app:orientation定義滑動方向。


    墨跡天氣引導界面共有4個視圖，先看一下：（這里引入的圖片都是實現后的，截圖都是靜態圖，運行程序看動畫效果）。

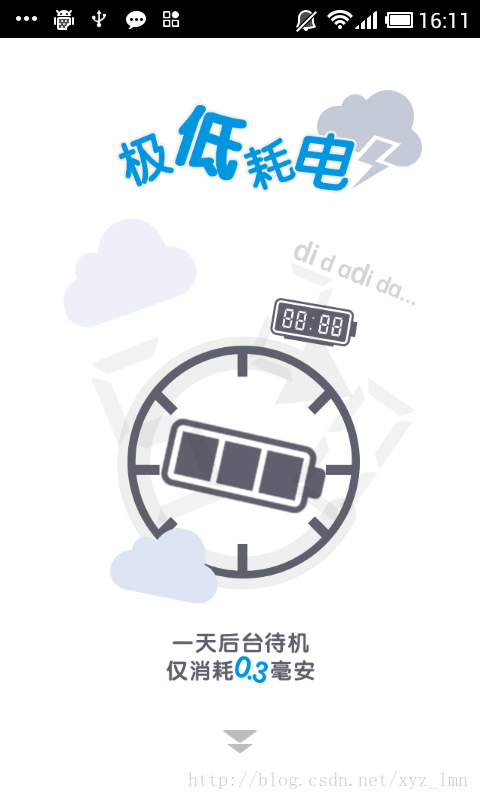

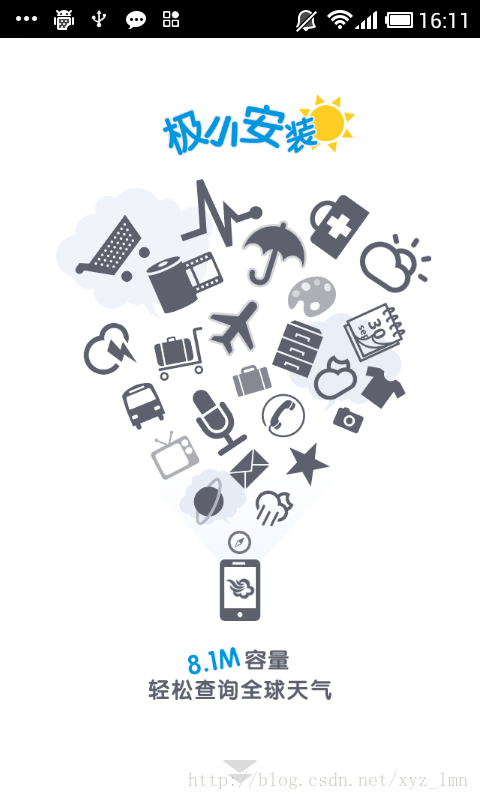

圖一                                                                                          圖二

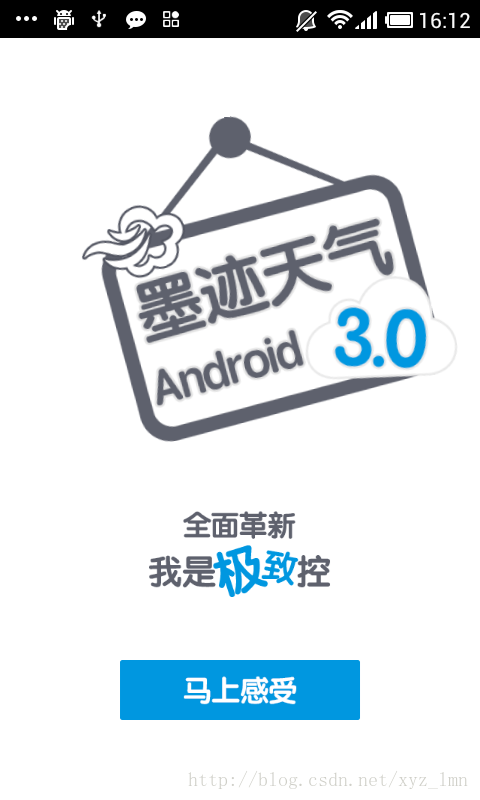

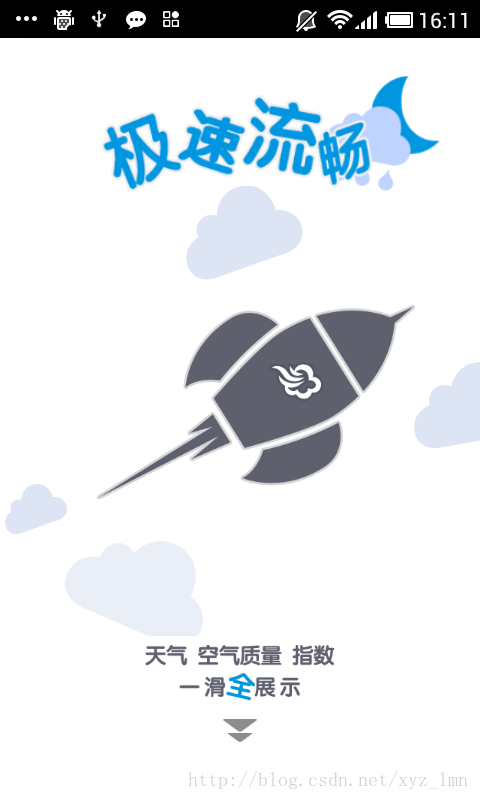

圖三                                                                                        圖四



    墨跡天氣的引導界面使用的無非是移動、漸變、縮放、轉動或者其中幾個的組合。我們介紹其中的部分實現。


1、縮放動畫


    首先是圖一的“極低耗電”使用了一個縮放效果，使用Property Animation實現如下：

    xml動畫文件：



[html] view plaincopyprint?
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <set xmlns:android="http://schemas.android.com/apk/res/android"
  3.     android:ordering="together" >
  4.
  5.     <objectAnimator
  6.         android:duration="1000"
  7.         android:interpolator="@android:anim/accelerate_decelerate_interpolator"
  8.         android:propertyName="scaleX"
  9.         android:valueFrom="1.0"
  10.         android:valueTo="1.1"
  11.         android:valueType="floatType" >
  12.     </objectAnimator>
  13.     <objectAnimator
  14.         android:duration="1000"
  15.         android:interpolator="@android:anim/accelerate_decelerate_interpolator"
  16.         android:propertyName="scaleY"
  17.         android:valueFrom="1.0"
  18.         android:valueTo="1.1"
  19.         android:valueType="floatType" >
  20.     </objectAnimator>
  21.
  22. </set>
<?xml version="1.0" encoding="utf-8"?> <set xmlns:android="http://schemas.android.com/apk/res/android" android:ordering="together" > <objectAnimator android:duration="1000" android:interpolator="@android:anim/accelerate_decelerate_interpolator" android:propertyName="scaleX" android:valueFrom="1.0" android:valueTo="1.1" android:valueType="floatType" > </objectAnimator> <objectAnimator android:duration="1000" android:interpolator="@android:anim/accelerate_decelerate_interpolator" android:propertyName="scaleY" android:valueFrom="1.0" android:valueTo="1.1" android:valueType="floatType" > </objectAnimator> </set>

java使用：

[java] view plaincopyprint?
  1. animation1=(AnimatorSet)AnimatorInflater.loadAnimator(PropertyAnimActivity.this,
  2.                 R.animator.tutorail_rotate);
  3.         LinearInterpolator lin = new LinearInterpolator();
  4.         animation1.setInterpolator(lin);
  5.         t1_icon2.setVisibility(View.VISIBLE);
  6.
  7.         animation1.setTarget(t1_icon2);
  8.         animation1.start();
animation1=(AnimatorSet)AnimatorInflater.loadAnimator(PropertyAnimActivity.this, R.animator.tutorail_rotate); LinearInterpolator lin = new LinearInterpolator(); animation1.setInterpolator(lin); t1_icon2.setVisibility(View.VISIBLE); animation1.setTarget(t1_icon2); animation1.start();


2、移動漸變組合動畫


    圖一中下面的箭頭使用了移動漸變組合動畫，實現如下：

    xml文件：

[html] view plaincopyprint?
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <set xmlns:android="http://schemas.android.com/apk/res/android"
  3.     android:ordering="together" >
  4.
  5.     <!--
  6.     可以包含<objectAnimator>, <valueAnimator>,<set>項
  7.     屬性：android:ordering=["together" | "sequentially"]，子集執行順序
  8.     sequentially    Play animations in this set sequentially
  9.     together (default)  Play animations in this set at the same time.
  10.     -->
  11.
  12.     <set
  13.         xmlns:android="http://schemas.android.com/apk/res/android"
  14.         android:ordering="together" >
  15.         <objectAnimator
  16.             android:duration="1000"
  17.             android:propertyName="translationX"
  18.             android:repeatCount="infinite"
  19.             android:repeatMode="reverse"
  20.             android:valueFrom="0"
  21.             android:valueTo="0"
  22.             android:valueType="floatType" >
  23.         </objectAnimator>
  24.         <objectAnimator
  25.             android:duration="1000"
  26.             android:propertyName="translationY"
  27.             android:repeatCount="infinite"
  28.             android:repeatMode="reverse"
  29.             android:valueFrom="-15"
  30.             android:valueTo="20"
  31.             android:valueType="floatType" >
  32.         </objectAnimator>
  33.     </set>
  34.
  35.     <objectAnimator
  36.         android:duration="1000"
  37.         android:propertyName="alpha"
  38.         android:repeatCount="infinite"
  39.         android:valueFrom="1.0"
  40.         android:valueTo="0.3"
  41.         android:valueType="floatType" >
  42.     </objectAnimator>
  43.     <!--
  44.    objectAnimator：
  45.
  46.         android:propertyName
  47.             對view可以設置一下值:
  48.                translationX and translationY:
  49.                    These properties control where the View is located
  50.                    as a delta from its left and top coordinates which
  51.                    are set by its layout container.
  52.                rotation, rotationX, and rotationY:
  53.                    These properties control the rotation
  54.                    in 2D (rotation property) and 3D around the pivot point.
  55.                scaleX and scaleY:
  56.                    These properties control the 2D scaling of a View around
  57.                    its pivot point.
  58.                pivotX and pivotY:
  59.                    These properties control the location of the pivot point,
  60.                    around which the rotation and scaling transforms occur.
  61.                    By default, the pivot point is located at the center of
  62.                    the object.
  63.                x and y:
  64.                    These are simple utility properties to describe
  65.                    the final location of the View in its container,
  66.                    as a sum of the left and top values and translationX
  67.                    and translationY values.
  68.                alpha:
  69.                    Represents the alpha transparency on the View.
  70.                    This value is 1 (opaque) by default, with a value of 0
  71.                    representing full transparency (not visible).
  72.
  73.                還可以設置"backgroundColor"等值
  74.
  75.         android:valueTo
  76.             float, int, or color. Required. The value where the animated property ends.
  77.             Colors are represented as six digit hexadecimal numbers (for example, #333333).
  78.
  79.         android:valueFrom
  80.             float, int, or color. The value where the animated property starts. If not specified,
  81.             the animation starts at the value obtained by the property's get method.
  82.             Colors are represented as six digit hexadecimal numbers (for example, #333333).
  83.
  84.         android:duration
  85.             int. The time in milliseconds of the animation. 300 milliseconds is the default.
  86.
  87.         android:startOffset
  88.             int. The amount of milliseconds the animation delays after start() is called.
  89.
  90.         android:repeatCount：重復次數
  91.             說明：
  92.             infinite：循環執行，
  93.             具體正整數表示循環次數
  94.
  95.         android:repeatMode：重復模式，
  96.             說明：
  97.                 restart：重新從頭開始執行
  98.                 reverse：反方向執行
  99.
  100.         android:valueType
  101.            Keyword. Do not specify this attribute if the value is a color.
  102.            The animation framework automatically handles color values
  103.
  104.            intType: Specifies that the animated values are integers
  105.            floatType (default): Specifies that the animated values are floats
  106.     -->
  107.
  108. </set>
<?xml version="1.0" encoding="utf-8"?> <set xmlns:android="http://schemas.android.com/apk/res/android" android:ordering="together" > <!-- 可以包含<objectAnimator>, <valueAnimator>,<set>項 屬性：android:ordering=["together" | "sequentially"]，子集執行順序 sequentially Play animations in this set sequentially together (default) Play animations in this set at the same time. --> <set xmlns:android="http://schemas.android.com/apk/res/android" android:ordering="together" > <objectAnimator android:duration="1000" android:propertyName="translationX" android:repeatCount="infinite" android:repeatMode="reverse" android:valueFrom="0" android:valueTo="0" android:valueType="floatType" > </objectAnimator> <objectAnimator android:duration="1000" android:propertyName="translationY" android:repeatCount="infinite" android:repeatMode="reverse" android:valueFrom="-15" android:valueTo="20" android:valueType="floatType" > </objectAnimator> </set> <objectAnimator android:duration="1000" android:propertyName="alpha" android:repeatCount="infinite" android:valueFrom="1.0" android:valueTo="0.3" android:valueType="floatType" > </objectAnimator> <!-- objectAnimator： android:propertyName 對view可以設置一下值: translationX and translationY: These properties control where the View is located as a delta from its left and top coordinates which are set by its layout container. rotation, rotationX, and rotationY: These properties control the rotation in 2D (rotation property) and 3D around the pivot point.
