使用ganglia監控hadoop及hbase集群
來源:程序員人生 發布時間:2015-03-23 08:27:05 閱讀次數:4841次
介紹性?xún)?nèi)容來自:http://www.uml.org.cn/sjjm/201305171.asp
1、Ganglia簡介
Ganglia 是 UC Berkeley 發起的1個開源監視項目,設計用于丈量數以千計的節點。每臺計算機都運行1個搜集和發送度量數據(如處理器速度、內存使用量等)的名為 gmond 的守護進程。它將從操作系統和指定主機中搜集。接收所有度量數據的主機可以顯示這些數據并且可以將這些數據的精簡表單傳遞到層次結構中。正由于有這類層次結構模式,才使得 Ganglia 可以實現良好的擴大。gmond 帶來的系統負載非常少,這使得它成為在集群中各臺計算機上運行的1段代碼,而不會影響用戶性能
1.1 Ganglia組件
Ganglia 監控套件包括3個主要部份:gmond,gmetad,和網頁接口,通常被稱為ganglia-web。
Gmond :是1個守護進程,他運行在每個需要監測的節點上,搜集監測統計,發送和接受在同1個組播或單播通道上的統計信息 如果他是1個發送者(mute=no)他會搜集基本指標,比如系統負載(load_one),CPU利用率。他同時也會發送用戶通過添加C/Python模塊來自定義的指標。 如果他是1個接收者(deaf=no)他集聚合所有從別的主機上發來的指標,并把它們都保存在內存緩沖區中。
Gmetad:也是1個守護進程,他定期檢查gmonds,從那里拉取數據,并將他們的指標存儲在RRD存儲引擎中。他可以查詢多個集群并聚合指標。他也被用于生成用戶界面的web前端。
Ganglia-web :顧名思義,他應當安裝在有g(shù)metad運行的機器上,以便讀取RRD文件。 集群是主機和度量數據的邏輯分組,比如數據庫服務器,網頁服務器,生產,測試,QA等,他們都是完全分開的,你需要為每一個集群運行單獨的gmond實例。
1般來講每一個集群需要1個接收的gmond,每一個網站需要1個gmetad。

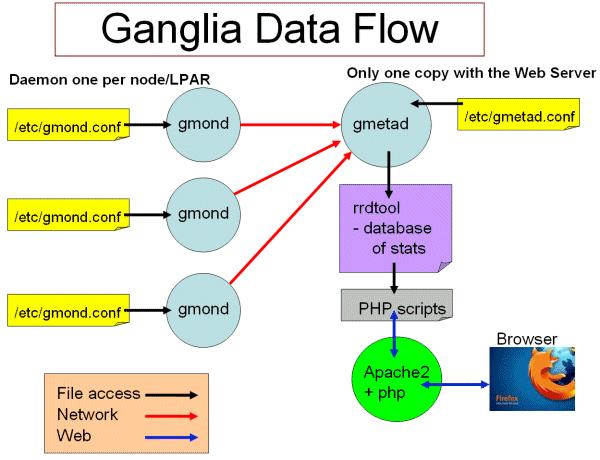

圖1 ganglia工作流
Ganglia工作流如圖1所示:
左側是運行在各個節點上的gmond進程,這個進程的配置只由節點上/etc/gmond.conf的文件決定。所以,在各個監視節點上都需要安裝和配置該文件。
右上角是更加負責的中心機(通常是這個集群中的1臺,也能夠不是)。在這個臺機器上運行這著gmetad進程,搜集來自各個節點上的信息并存儲在RRDtool上,該進程的配置只由/etc/gmetad.conf決定。
右下角顯示了關于網頁方面的1些信息。我們的閱讀網站時調用php腳本,從RRDTool數據庫中抓取信息,動態的生成各類圖表。
1.2 Ganglia運行模式(單播與多播)
Ganglia的搜集數據工作可以工作在單播(unicast)或多播(multicast)模式下,默許為多播模式。
單播:發送自己搜集到的監控?cái)?shù)據到特定的1臺或幾臺機器上,可以跨網段。
多播:發送自己搜集到的監控?cái)?shù)據到同1網段內所有的機器上,同時搜集同1網段內的所有機器發送過來的監控?cái)?shù)據。由于是以廣播包的情勢發送,因此需要同1網段內。但同1網段內,又可以定義不同的發送通道。
2、安裝ganglia
1、拓?fù)湔f(shuō)明
3臺主機,分別為:
10.171.29.191 master
10.171.94.155 slave1
10.251.0.197 slave3
其中master將gmeta及web,3臺機都作gmon
以下步驟均使用root用戶履行
2、master上安裝gmeta及web
yum install ganglia-web.x86_64
yum install ganglia-gmetad.x86_64
3、在3臺機上都撫慰gmond
yum install ganglia-gmond.x86_64
4、在3臺機器上配置/etc/ganglia/gmond.conf,修改以下內容:
udp_send_channel {
#bind_hostname = yes # Highly recommended, soon to be default.
# This option tells gmond to use a source address
# that resolves to the machine's hostname. Without
# this, the metrics may appear to come from any
# interface and the DNS names associated with
# those IPs will be used to create the RRDs.
mcast_join = 10.171.29.191
port = 8649
ttl = 1
}
/* You can specify as many udp_recv_channels as you like as well. */
udp_recv_channel {
#mcast_join = 239.2.11.71
port = 8649
#bind = 239.2.11.71
}
行將默許的多播地址改成master地址,將udp_recv_channel 的2個IP注釋掉。
5、在master上修改/etc/ganglia/gmetad.conf
修改data_source,改成:
data_source "my cluster” 10.171.29.191
6、ln -s /usr/share/ganglia /var/www/ganglia
若有問題,可以將/usr/share/ganglia的內容直接復制到/var/www/ganglia
7、修改/etc/httpd/conf.d/ganglia.conf,改成:
#
# Ganglia monitoring system php web frontend
#
Alias /ganglia /usr/share/ganglia
<Location /ganglia>
Order deny,allow
Allow from all
Allow from 127.0.0.1
Allow from ::1
# Allow from .example.com
</Location>
行將 Deny from all 改成 Allow from all,否則在頁面訪問時有權限問題。
8、啟動
service gmetad start
service gmond start
/usr/sbin/apachectl start
9、從頁面上訪問
http://ip/ganglia
1些注意問題:
1、gmetad搜集到的信息被放到/var/lib/ganglia/rrds/
2、可以通過以下命令檢查是不是有數據在傳輸
tcpdump port 8649
3、配置hadoop與hbase
1、配置hadoop
hadoop-metrics2.properties
# syntax: [prefix].[source|sink|jmx].[instance].[options]
# See package.html for org.apache.hadoop.metrics2 for details
*.sink.file.class=org.apache.hadoop.metrics2.sink.FileSink
#namenode.sink.file.filename=namenode-metrics.out
#datanode.sink.file.filename=datanode-metrics.out
#jobtracker.sink.file.filename=jobtracker-metrics.out
#tasktracker.sink.file.filename=tasktracker-metrics.out
#maptask.sink.file.filename=maptask-metrics.out
#reducetask.sink.file.filename=reducetask-metrics.out
# Below are for sending metrics to Ganglia
#
# for Ganglia 3.0 support
# *.sink.ganglia.class=org.apache.hadoop.metrics2.sink.ganglia.GangliaSink30
#
# for Ganglia 3.1 support
*.sink.ganglia.class=org.apache.hadoop.metrics2.sink.ganglia.GangliaSink31
*.sink.ganglia.period=10
# default for supportsparse is false
*.sink.ganglia.supportsparse=true
*.sink.ganglia.slope=jvm.metrics.gcCount=zero,jvm.metrics.memHeapUsedM=both
*.sink.ganglia.dmax=jvm.metrics.threadsBlocked=70,jvm.metrics.memHeapUsedM=40
menode.sink.ganglia.servers=10.171.29.191:8649
datanode.sink.ganglia.servers=10.171.29.191:8649
jobtracker.sink.ganglia.servers=10.171.29.191:8649
tasktracker.sink.ganglia.servers=10.171.29.191:8649
maptask.sink.ganglia.servers=10.171.29.191:8649
reducetask.sink.ganglia.servers=10.171.29.191:8649
2、配置hbase
hadoop-metrics.properties
# See http://wiki.apache.org/hadoop/GangliaMetrics
# Make sure you know whether you are using ganglia 3.0 or 3.1.
# If 3.1, you will have to patch your hadoop instance with HADOOP⑷675
# And, yes, this file is named hadoop-metrics.properties rather than
# hbase-metrics.properties because we're leveraging the hadoop metrics
# package and hadoop-metrics.properties is an hardcoded-name, at least
# for the moment.
#
# See also http://hadoop.apache.org/hbase/docs/current/metrics.html
# GMETADHOST_IP is the hostname (or) IP address of the server on which the ganglia
# meta daemon (gmetad) service is running
# Configuration of the "hbase" context for NullContextWithUpdateThread
# NullContextWithUpdateThread is a null context which has a thread calling
# periodically when monitoring is started. This keeps the data sampled
# correctly.
hbase.class=org.apache.hadoop.metrics.spi.NullContextWithUpdateThread
hbase.period=10
# Configuration of the "hbase" context for file
# hbase.class=org.apache.hadoop.hbase.metrics.file.TimeStampingFileContext
# hbase.fileName=/tmp/metrics_hbase.log
# HBase-specific configuration to reset long-running stats (e.g. compactions)
# If this variable is left out, then the default is no expiration.
hbase.extendedperiod = 3600
# Configuration of the "hbase" context for ganglia
# Pick one: Ganglia 3.0 (former) or Ganglia 3.1 (latter)
# hbase.class=org.apache.hadoop.metrics.ganglia.GangliaContext
hbase.class=org.apache.hadoop.metrics.ganglia.GangliaContext31
hbase.period=10
hbase.servers=10.171.29.191:8649
# Configuration of the "jvm" context for null
jvm.class=org.apache.hadoop.metrics.spi.NullContextWithUpdateThread
jvm.period=10
# Configuration of the "jvm" context for file
# jvm.class=org.apache.hadoop.hbase.metrics.file.TimeStampingFileContext
# jvm.fileName=/tmp/metrics_jvm.log
# Configuration of the "jvm" context for ganglia
# Pick one: Ganglia 3.0 (former) or Ganglia 3.1 (latter)
# jvm.class=org.apache.hadoop.metrics.ganglia.GangliaContext
jvm.class=org.apache.hadoop.metrics.ganglia.GangliaContext31
jvm.period=10
jvm.servers=10.171.29.191:8649
# Configuration of the "rpc" context for null
rpc.class=org.apache.hadoop.metrics.spi.NullContextWithUpdateThread
rpc.period=10
# Configuration of the "rpc" context for file
# rpc.class=org.apache.hadoop.hbase.metrics.file.TimeStampingFileContext
# rpc.fileName=/tmp/metrics_rpc.log
# Configuration of the "rpc" context for ganglia
# Pick one: Ganglia 3.0 (former) or Ganglia 3.1 (latter)
# rpc.class=org.apache.hadoop.metrics.ganglia.GangliaContext
rpc.class=org.apache.hadoop.metrics.ganglia.GangliaContext31
rpc.period=10
rpc.servers=10.171.29.191:8649
# Configuration of the "rest" context for ganglia
# Pick one: Ganglia 3.0 (former) or Ganglia 3.1 (latter)
# rest.class=org.apache.hadoop.metrics.ganglia.GangliaContext
rest.class=org.apache.hadoop.metrics.ganglia.GangliaContext31
rest.period=10
rest.servers=10.171.29.191:8649
重啟hadoop與hbase。
