自定義LoadingView大全

來源：程序員人生發布時間：2016-08-26 09:26:36 閱讀次數：2535次

　　那1刻我升起風馬不為乞福只為守候你的到來
　　那1天閉目在經殿香霧中驀然聽見你頌經中的真言
　　那1日壘起瑪尼堆不為修德只為投下心湖的石子
　　那1夜我聽了1宿梵唱不為參悟只為尋你的1絲氣味

概述

有時候我會為了實現某個動畫的算法而挖空心思，苦苦思考。常常會在草稿上面繪制動畫軌跡，真的很多時候幾天就在糾結1個動畫的實現，不過最后成功后真的很滿足喜悅。

我陸續出過1些LodingView的文章，但都比較雜亂。近來我在網上看到1張圖，并通過代碼實現了出來。在這邊非常感謝@ldoublem，我會不斷更新LodingView把好看及簡潔的動畫集成進來，希望能夠幫助到你。

下載源碼

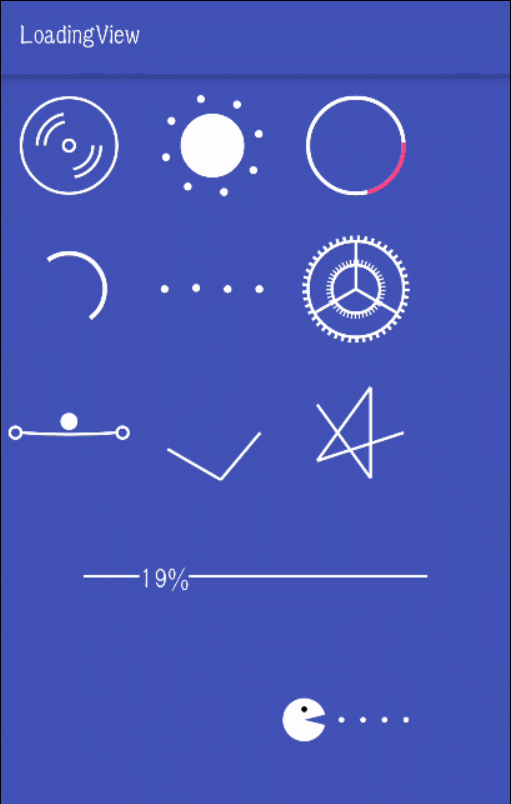

先出圖說話：

load

WSCircleCD

public class WSCircleCD extends View {

    private Paint mPaint;
    private Context mContext;

    private int circleCenterX, circleCenterY;

    private int circleRadius;

    private final static float RADIUS_RATIO = 2 / 3f;

    public WSCircleCD(Context context) {
        this(context, null);
    }

    public WSCircleCD(Context context, AttributeSet attrs) {
        this(context, attrs, 0);
    }

    public WSCircleCD(Context context, AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
        init(context);
    }

    private void init(Context context) {
        mContext = context;
        mPaint = new Paint();
        mPaint.setAntiAlias(true);
        mPaint.setDither(true);
        mPaint.setColor(Color.WHITE);
        mPaint.setStyle(Paint.Style.STROKE);
    }

    @Override
    protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
        super.onMeasure(widthMeasureSpec, heightMeasureSpec);
        int widthSpecMode = MeasureSpec.getMode(widthMeasureSpec);
        int heightSpecMode = MeasureSpec.getMode(heightMeasureSpec);

        int widthSpecSize = MeasureSpec.getSize(widthMeasureSpec);
        int heightSpecSize = MeasureSpec.getSize(heightMeasureSpec);

        //處理 wrap_content問題
        int defaultDimension = dip2px(100);

        if (widthSpecMode == MeasureSpec.AT_MOST && heightSpecMode == MeasureSpec.AT_MOST) {
            setMeasuredDimension(defaultDimension, defaultDimension);
        } else if (widthSpecMode == MeasureSpec.AT_MOST) {
            setMeasuredDimension(defaultDimension, heightSpecSize);
        } else if (heightSpecMode == MeasureSpec.AT_MOST) {
            setMeasuredDimension(widthSpecSize, defaultDimension);
        }

    }

    @Override
    protected void onSizeChanged(int w, int h, int oldw, int oldh) {
        super.onSizeChanged(w, h, oldw, oldh);

        circleCenterX = w / 2;
        circleCenterY = h / 2;

        //處理padding情況
        circleRadius = (int) (Math.min(Math.min(circleCenterY - getPaddingTop(), circleCenterY - getPaddingBottom()),
                Math.min(circleCenterX - getPaddingLeft(), circleCenterX - getPaddingRight())) * RADIUS_RATIO);

    }

    @Override
    protected void onDraw(Canvas canvas) {
        super.onDraw(canvas);

        mPaint.setStrokeWidth(dip2px(2));
        canvas.drawCircle(circleCenterX, circleCenterY, circleRadius, mPaint);//畫大圓

        canvas.drawCircle(circleCenterX, circleCenterY, dip2px(4), mPaint);//畫中心小圓圓

        // 下面是畫弧線
        RectF rectF = new RectF(circleCenterX - circleRadius * RADIUS_RATIO, circleCenterY - circleRadius * RADIUS_RATIO,
                circleCenterX + circleRadius * RADIUS_RATIO, circleCenterY + circleRadius * RADIUS_RATIO);

        canvas.drawArc(rectF, 0, 80, false, mPaint);
        canvas.drawArc(rectF, 180, 80, false, mPaint);


        rectF = new RectF(circleCenterX - circleRadius / 2, circleCenterY - circleRadius / 2,
                circleCenterX + circleRadius / 2, circleCenterY + circleRadius / 2);

        canvas.drawArc(rectF, 0, 80, false, mPaint);
        canvas.drawArc(rectF, 180, 80, false, mPaint);

    }

    //開始動畫
    public void startAnimator() {
        post(new Runnable() {
            @Override
            public void run() {
                RotateAnimation animation = new RotateAnimation(0f, 360f, Animation.RELATIVE_TO_SELF, 0.5f, Animation.RELATIVE_TO_SELF, 0.5f);
                animation.setInterpolator(new LinearInterpolator());
                animation.setRepeatCount(-1);
                animation.setDuration(1000);
                animation.setFillAfter(true);
                startAnimation(animation);
            }
        });
    }

    public void setPaintColor(int color) {
        mPaint.setColor(color);
    }

    /**
     * 根據手機的分辨率從 dp 的單位 轉成為 px(像素)
     */
    public int dip2px(float dpValue) {
        final float scale = mContext.getResources().getDisplayMetrics().density;
        return (int) (dpValue * scale + 0.5f);
    }
}

我主要講授下紅字注釋的地方，為何自定義1個View在布局時將其大小設為wrap_content但其實際卻是match_parent的效果？請查閱谷歌的小弟1自定義View系列教程02–onMeasure源碼詳實分析；處理padding情況，不然布局xml文件設置padding值將無效；繪制進程比較簡單，我這里就不再詳細講授，有不懂請給我留言。

WSCircleSun

WSCircleSun主要是控制小圓的旋轉，每次移動角度就增加moveAngle。


@Override
protected void onDraw(Canvas canvas) {
    super.onDraw(canvas);

    mPaint.setStrokeWidth(circleRadius * SMALL_RADIUS_RATIO);
    //繪制小圓
    for (int i = 0; i < SMALL_CIRCLE_COUNT; i++) {
        canvas.drawCircle((float) (circleCenterX + circleRadius * Math.sin(Math.toRadians(i * 360 / SMALL_CIRCLE_COUNT + moveAngle))),
                (float) (circleCenterY + circleRadius * Math.cos(Math.toRadians(i * 360 / SMALL_CIRCLE_COUNT + moveAngle))),
                circleRadius * SMALL_RADIUS_RATIO,
                mPaint);
    }
    //繪制大圓
    canvas.drawCircle(circleCenterX, circleCenterY, circleRadius * LARGE_RADIUS_RATIO, mPaint);
}


//開始動畫
public void startAnimator() {
    post(new Runnable() {
        @Override
        public void run() {
            ValueAnimator animator = ValueAnimator.ofInt(0, 361);
            animator.setDuration(3000);
            animator.setInterpolator(new LinearInterpolator());
            animator.setRepeatMode(ValueAnimator.RESTART);
            animator.setRepeatCount(ValueAnimator.INFINITE);
            animator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
                @Override
                public void onAnimationUpdate(ValueAnimator valueAnimator) {
                    moveAngle = (int) valueAnimator.getAnimatedValue();
                    postInvalidate();
                }
            });
            animator.start();
        }
    });
}

WSCircleRing

WSCircleRing主要是控制弧度的startAngle。


@Override
protected void onDraw(Canvas canvas) {
    super.onDraw(canvas);
    mPaint.setColor(Color.WHITE);
    mPaint.setStrokeWidth(circleRadius * RING_RADIUS_RATIO);
    canvas.drawCircle(circleCenterX, circleCenterY, circleRadius, mPaint);//畫背景
    mPaint.setColor(Color.parseColor("#FF4081"));
    RectF rectF = new RectF(circleCenterX - circleRadius, circleCenterY - circleRadius,
            circleCenterX + circleRadius, circleCenterY + circleRadius);
    canvas.drawArc(rectF, 0 + moveAngle, 80, false, mPaint);
}
//開始動畫
public void startAnimator() {
    post(new Runnable() {
        @Override
        public void run() {
            ValueAnimator animator = ValueAnimator.ofInt(0, 361);
            animator.setDuration(1000);
            animator.setInterpolator(new LinearInterpolator());
            animator.setRepeatMode(ValueAnimator.RESTART);
            animator.setRepeatCount(ValueAnimator.INFINITE);
            animator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
                @Override
                public void onAnimationUpdate(ValueAnimator valueAnimator) {
                    moveAngle = (int) valueAnimator.getAnimatedValue();
                    postInvalidate();
                }
            });
            animator.start();
        }
    });
}

WSCircleFace

WSCircleFace主要是控制臉的出現和消失，動畫出現1半后臉出現，反之消失。


    @Override
    protected void onDraw(Canvas canvas) {
        super.onDraw(canvas);

        mPaint.setStyle(Paint.Style.STROKE);
        mPaint.setStrokeWidth(circleRadius * FACE_RADIUS_RATIO);

        RectF rectF = new RectF(circleCenterX - circleRadius, circleCenterY - circleRadius,
                circleCenterX + circleRadius, circleCenterY + circleRadius);
        canvas.drawArc(rectF, startAngle, 180, false, mPaint);

        mPaint.setStyle(Paint.Style.FILL);
        if (isFace) {  //畫臉
            canvas.drawCircle((float) (circleCenterX - circleRadius * Math.sin(Math.toRadians(EYE_ROUND))),
                    (float) (circleCenterY - circleRadius * Math.cos(Math.toRadians(EYE_ROUND))), mPaint.getStrokeWidth() * 3 / 2, mPaint);

            canvas.drawCircle((float) (circleCenterX + circleRadius * Math.sin(Math.toRadians(EYE_ROUND))),
                    (float) (circleCenterY - circleRadius * Math.cos(Math.toRadians(EYE_ROUND))), mPaint.getStrokeWidth() * 3 / 2, mPaint);
        }

    }

    //開始動畫
    public void startAnimator() {
        post(new Runnable() {
            @Override
            public void run() {
                ValueAnimator animator = ValueAnimator.ofFloat(0f, 1.0f);
                animator.setDuration(1500);
                animator.setInterpolator(new LinearInterpolator());
                animator.setRepeatMode(ValueAnimator.RESTART);
                animator.setRepeatCount(ValueAnimator.INFINITE);
                animator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
                    @Override
                    public void onAnimationUpdate(ValueAnimator valueAnimator) {
                        float mAnimatedValue = (float) valueAnimator.getAnimatedValue();
                        if (mAnimatedValue < 0.5) {
                            isFace = false;
                            startAngle = (int) (720 * mAnimatedValue);
                        } else {
                            startAngle = 720;
                            isFace = true;
                        }

                        postInvalidate();
                    }
                });
                animator.start();
            }
        });
    }

WSCircleJump

WSCircleJump主要是控制小圓的彈跳，上1個小圓彈跳結束后下1個小圓開始。


    @Override
    protected void onDraw(Canvas canvas) {
        super.onDraw(canvas);

        mPaint.setStrokeWidth(mRadius * JUMP_BALL_RATIO);

        //畫小球
        for (int i = 0; i < BALL_COUNT; i++) {
            if (i == currentBallPosition) {
                canvas.drawCircle((centerX - mRadius) + 2 * mRadius / (BALL_COUNT - 1) * i,
                        centerY - ballJumpY, mPaint.getStrokeWidth(), mPaint);
            } else {
                canvas.drawCircle((centerX - mRadius) + 2 * mRadius / (BALL_COUNT - 1) * i,
                        centerY, mPaint.getStrokeWidth(), mPaint);
            }
        }

    }

    //開始動畫
    public void startAnimator() {
        post(new Runnable() {
            @Override
            public void run() {
                ValueAnimator animator = ValueAnimator.ofFloat(0f, 1.0f);
                animator.setDuration(500);
                animator.setInterpolator(new LinearInterpolator());
                animator.setRepeatMode(ValueAnimator.RESTART);
                animator.setRepeatCount(ValueAnimator.INFINITE);

                animator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
                    @Override
                    public void onAnimationUpdate(ValueAnimator valueAnimator) {
                        mAnimatedValue = (float) valueAnimator.getAnimatedValue();
                        if (mAnimatedValue < 0.5) {
                            ballJumpY = mAnimatedValue * mRadius;
                        } else {
                            ballJumpY = (1 - mAnimatedValue) * mRadius;
                        }
                        postInvalidate();
                    }
                });

                animator.addListener(new AnimatorListenerAdapter() {
                    @Override
                    public void onAnimationStart(Animator animation) {
                        super.onAnimationStart(animation);
                    }

                    @Override
                    public void onAnimationEnd(Animator animation) {
                        super.onAnimationEnd(animation);
                    }

                    @Override
                    public void onAnimationRepeat(Animator animation) {
                        super.onAnimationRepeat(animation);
                        currentBallPosition++;
                        if (currentBallPosition >= BALL_COUNT) {
                            currentBallPosition = 0;
                        }
                    }
                });

                animator.start();
            }
        });
    }

WSGears

WSGears主要是繪制大小齒輪。


    @Override
    protected void onDraw(Canvas canvas) {
        super.onDraw(canvas);

        mPaint.setStrokeWidth(outCircleRadius * GEAR_RADIUS_RATIO);

        //60 是偏移量    繪制直線
        for (int i = 0; i < 360 / 120; i++) {
            canvas.drawLine(centerX, centerY, (float) (centerX + outCircleRadius * Math.sin(Math.toRadians(i * 120 + 60))),
                    (float) (centerY + outCircleRadius * Math.cos(Math.toRadians(i * 120 + 60))), mPaint);
        }

        //繪制外圓齒輪
        for (int i = 0; i < 360 / 8; i++) {
            canvas.drawLine((float) (centerX + outCircleRadius * Math.sin(Math.toRadians(i * 8 + moveAngle))),
                    (float) (centerY + outCircleRadius * Math.cos(Math.toRadians(i * 8 + moveAngle))),
                    (float) (centerX + (outCircleRadius + dip2px(4)) * Math.sin(Math.toRadians(i * 8 + moveAngle))),
                    (float) (centerY + (outCircleRadius + dip2px(4)) * Math.cos(Math.toRadians(i * 8 + moveAngle))), mPaint);
        }

        //繪制內圓齒輪
        mPaint.setStrokeWidth(inCircleRadius * GEAR_RADIUS_RATIO);
        for (int i = 0; i < 360 / 8; i++) {
            canvas.drawLine((float) (centerX + inCircleRadius * Math.sin(Math.toRadians(i * 8 - moveAngle))),
                    (float) (centerY + inCircleRadius * Math.cos(Math.toRadians(i * 8 - moveAngle))),
                    (float) (centerX + (inCircleRadius + dip2px(4)) * Math.sin(Math.toRadians(i * 8 - moveAngle))),
                    (float) (centerY + (inCircleRadius + dip2px(4)) * Math.cos(Math.toRadians(i * 8 - moveAngle))), mPaint);

        }

        mPaint.setStrokeWidth(mPaint.getStrokeWidth() * 2);
        canvas.drawCircle(centerX, centerY, outCircleRadius, mPaint);

        canvas.drawCircle(centerX, centerY, inCircleRadius, mPaint);


    }

    //開始動畫
    public void startAnimator() {
        post(new Runnable() {
            @Override
            public void run() {

                ValueAnimator animator = ValueAnimator.ofFloat(0f, 1.0f);
                animator.setDuration(5000);
                animator.setInterpolator(new AccelerateDecelerateInterpolator());
                animator.setRepeatMode(ValueAnimator.RESTART);
                animator.setRepeatCount(ValueAnimator.INFINITE);
                animator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
                    @Override
                    public void onAnimationUpdate(ValueAnimator valueAnimator) {
                        mAnimatedValue = (float) valueAnimator.getAnimatedValue();
                        moveAngle = (int) (mAnimatedValue * 360);

                        postInvalidate();
                    }
                });

                animator.start();
            }
        });
    }

WSJump

WSJump利用貝塞爾曲線實現彈動效果。


    @Override
    protected void onDraw(Canvas canvas) {
        super.onDraw(canvas);

        mPaint.setStyle(Paint.Style.STROKE);
        mPaint.setStrokeWidth(dip2px(2));
        //繪制貝塞爾曲線
        Path mPath = new Path();
        mPath.moveTo(centerX - mRadius, centerY);
        mPath.quadTo(centerX, centerY + quadMoveY, centerX + mRadius, centerY);
        canvas.drawPath(mPath, mPaint);

        //繪制2邊小球   dip2px(4)為小球半徑  分別加上和減去半徑
        canvas.drawCircle(centerX - mRadius - dip2px(4), centerY, dip2px(4), mPaint);
        canvas.drawCircle(centerX + mRadius + dip2px(4), centerY, dip2px(4), mPaint);

        //繪制中間小球    dip2px(4+3)  兩邊小球的半徑 加上自己的半徑
        mPaint.setStyle(Paint.Style.FILL);
        canvas.drawCircle(centerX, centerY - dip2px(4 + 3) - mJumpY, dip2px(6), mPaint);


    }

    //開始動畫
    public void startAnimator() {
        post(new Runnable() {
            @Override
            public void run() {
                ValueAnimator animator = ValueAnimator.ofFloat(0f, 1.0f);
                animator.setDuration(500);
                animator.setInterpolator(new LinearInterpolator());
                animator.setRepeatMode(ValueAnimator.RESTART);
                animator.setRepeatCount(ValueAnimator.INFINITE);

                animator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
                    @Override
                    public void onAnimationUpdate(ValueAnimator valueAnimator) {
                        float value = (float) valueAnimator.getAnimatedValue();
                        if (value > 0.75f) {  // 0.75  =0.25*3
                            quadMoveY = mRadius * (1 - value) * 3;
                        } else {
                            quadMoveY = value * mRadius;
                        }
                        if (value > 0.35f) {// 0.7  =0.35*2
                            mJumpY = (1 - value) * mRadius;
                        } else {
                            mJumpY = value * mRadius * 2;
                        }
                        postInvalidate();
                    }
                });
                animator.start();
            }
        });
    }

WSFiveStar

WSFiveStar主要控制線條的繪制，1條直線從出發點繪制到終點，終點作為下1條直線的出發點，順次繪制。利用mPath.rLineTo增量的方式繪制直線，如果你敢興趣可以通過設置setRegularPolygon(int regularPolygon)方法設置需要繪制的是正多邊形，我繪制出過正2104邊形。


    @Override
    protected void onDraw(Canvas canvas) {
        super.onDraw(canvas);

        mPaint.setStrokeWidth(dip2px(2));

        lineStartX = (float) (circleCenterX + circleRadius * Math.cos(Math.toRadians(startAngle)));
        lineStartY = (float) (circleCenterY + circleRadius * Math.sin(Math.toRadians(startAngle)));

        mPath.moveTo(lineStartX, lineStartY);

        lineEndX = (float) (circleCenterX + circleRadius * Math.cos(Math.toRadians(startAngle + polygonAngle * 2)));
        lineEndY = (float) (circleCenterY + circleRadius * Math.sin(Math.toRadians(startAngle + polygonAngle * 2)));


        mPath.rLineTo((lineEndX - lineStartX) * mValue, (lineEndY - lineStartY) * mValue);

        canvas.drawPath(mPath, mPaint);

    }

    //開始動畫
    public void startAnimator() {
        post(new Runnable() {
            @Override
            public void run() {
                ValueAnimator animator = ValueAnimator.ofFloat(0f, 1.0f);
                animator.setDuration(500);
                animator.setInterpolator(new LinearInterpolator());
                animator.setRepeatMode(ValueAnimator.RESTART);
                animator.setRepeatCount(ValueAnimator.INFINITE);
                animator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
                    @Override
                    public void onAnimationUpdate(ValueAnimator animation) {
                        mValue = (float) animation.getAnimatedValue();
                        if (mValue >= 0.9f) {
                            mValue = 1.0f;
                        }
                        postInvalidate();
                    }
                });
                animator.addListener(new AnimatorListenerAdapter() {
                    @Override
                    public void onAnimationRepeat(Animator animation) {
                        super.onAnimationRepeat(animation);
                        startAngle += polygonAngle * 2;
                        if (startAngle > polygonAngle * 2 * regularPolygon) {
                            startAngle = 0;
                            mPath.reset();
                        }
                    }
                });
                animator.start();
            }
        });
    }

WSLineProgress

WSLineProgress主要是控制兩段直線的繪制。


    @Override
    protected void onDraw(Canvas canvas) {
        super.onDraw(canvas);

        mPaint.setStrokeWidth(dip2px(2));
        mPaint.setTextSize(dip2px(20));

        text = mValue + "%";

        fontWidth = mPaint.measureText(text);
        fontHeight = getFontHeight(mPaint, text);

        if (mValue == 0) {
            canvas.drawText(text, centerX - mRadius, centerY + fontHeight / 2, mPaint);
            canvas.drawLine(centerX - mRadius + fontWidth, centerY, centerX + mRadius, centerY, mPaint);
        } else if (mValue >= 100) {
            canvas.drawText(text, centerX + mRadius - fontWidth, centerY + fontHeight / 2, mPaint);
            canvas.drawLine(centerX - mRadius, centerY, centerX + mRadius - fontWidth, centerY, mPaint);

        } else {

            float lineWidth = 2 * mRadius - fontWidth;
            //左側直線
            canvas.drawLine(centerX - mRadius, centerY, centerX - mRadius + (float) mValue / 100 * lineWidth, centerY, mPaint);
            //右側直線
            canvas.drawLine(centerX - mRadius + (float) mValue / 100 * lineWidth + fontWidth, centerY, centerX + mRadius, centerY, mPaint);
            //繪制文本
            canvas.drawText(text, centerX - mRadius + (float) mValue / 100 * lineWidth, centerY + fontHeight / 2, mPaint);

        }

    }

    //開始動畫
    public void startAnimator() {
        post(new Runnable() {
            @Override
            public void run() {
                ValueAnimator animator = ValueAnimator.ofInt(0, 101);
                animator.setDuration(5000);
                animator.setInterpolator(new LinearInterpolator());
                animator.setRepeatMode(ValueAnimator.RESTART);
                animator.setRepeatCount(ValueAnimator.INFINITE);
                animator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
                    @Override
                    public void onAnimationUpdate(ValueAnimator animation) {
                        mValue = (int) animation.getAnimatedValue();
                        postInvalidate();
                    }
                });
                animator.start();
            }
        });
    }

WSEatBeans

WSEatBeans主要是控制嘴的張合，豆數量的變化。


    @Override
    protected void onDraw(Canvas canvas) {
        super.onDraw(canvas);

        mPaint.setStrokeWidth(dip2px(2));
        RectF rectF = new RectF(centerX - mRadius + moveX, centerY - eatRadius, centerX - mRadius + eatRadius * 2
                + moveX, centerY + eatRadius);
        canvas.drawArc(rectF, eatStartAngle, eatSweepAngle, true, mPaint);

        //畫眼睛
        mPaint.setColor(Color.BLACK);
        canvas.drawCircle(centerX - mRadius + eatRadius + moveX, centerY - eatRadius / 2, dip2px(2), mPaint);

        //繪制豆
        mPaint.setColor(Color.WHITE);
        //豆的個數是間隔數減去1
        int count = (2 * (mRadius - eatRadius)) / eatRadius - 1;
        for (int i = eatBeans; i < count; i++) {
            canvas.drawCircle(centerX - mRadius + eatRadius * 2 +
                    eatRadius * (i + 1), centerY, dip2px(2), mPaint);
        }


    }

    //開始動畫
    public void startAnimator() {
        post(new Runnable() {
            @Override
            public void run() {
                ValueAnimator animator = ValueAnimator.ofFloat(0f, 1.0f);
                animator.setDuration(3000);
                animator.setInterpolator(new LinearInterpolator());
                animator.setRepeatMode(ValueAnimator.RESTART);
                animator.setRepeatCount(ValueAnimator.INFINITE);
                animator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
                    @Override
                    public void onAnimationUpdate(ValueAnimator animation) {

                        moveX = (int) ((float) animation.getAnimatedValue() * 2 * (mRadius - eatRadius));
                        eatBeans = moveX / eatRadius;

                        if (eatState == 0) {
                            eatStartAngle -= 2;
                            if (eatStartAngle <= 0) {
                                eatState = 1;
                            }
                        } else if (eatState == 1) {
                            eatStartAngle += 2;
                            if (eatStartAngle >= 30) {
                                eatState = 0;
                            }
                        }
                        eatSweepAngle = 360 - eatStartAngle * 2;
                        postInvalidate();
                    }
                });
                animator.start();
            }
        });
    }

WSCircleBar

WSCircleBar，WSCircleArc，WSCircleRise類似。


    @Override
    protected void onDraw(Canvas canvas) {
        super.onDraw(canvas);

        mPaint.setStyle(Paint.Style.FILL);
        mPaint.setStrokeWidth(circleRadius * BAR_RADIUS_RATIO);
        mPaint.setColor(Color.WHITE);
        //畫背景
        canvas.drawCircle(circleCenterX, circleCenterY, circleRadius, mPaint);

        //畫bar
        RectF rect = new RectF(circleCenterX - circleRadius, circleCenterY - circleRadius,
                circleCenterX + circleRadius, circleCenterY + circleRadius);
        mPaint.setColor(Color.BLACK);
        mPaint.setStyle(Paint.Style.STROKE);
        mPaint.setStrokeWidth(mPaint.getStrokeWidth() * 2);
        canvas.drawArc(rect, startAngle, sweepAngle, false, mPaint);

        //畫文字
        mPaint.setStyle(Paint.Style.FILL);
        text = (int) (mValueAnimator * 100) + "%";
        mPaint.setTextSize(mPaint.getStrokeWidth() * 2);
        canvas.drawText(text, circleCenterX - mPaint.measureText(text) / 2, circleCenterY + getFontHeight(mPaint, text) / 2, mPaint);

    }

    //開始動畫
    public void startAnimator() {
        post(new Runnable() {
            @Override
            public void run() {
                ValueAnimator animator = ValueAnimator.ofFloat(0f, 1.0f);
                animator.setDuration(5000);
                animator.setInterpolator(new LinearInterpolator());
                animator.setRepeatMode(ValueAnimator.RESTART);
                animator.setRepeatCount(ValueAnimator.INFINITE);
                animator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
                    @Override
                    public void onAnimationUpdate(ValueAnimator valueAnimator) {
                        mValueAnimator = (float) valueAnimator.getAnimatedValue();
                        sweepAngle = 360 * mValueAnimator;
                        postInvalidate();
                    }
                });
                animator.start();
            }
        });
    }
